Dedicated Type MoSi2 Heating Elements

Model:Dedicated Type For Special Atmosphere

Brand:YTTORCH

+ INQUIRY

Product Information

Product Name	Dedicated type MoSi2 heating elements
Brand	YTTORCH
Place Of Origin	CHINA
Model No	Dedicated type for special atmosphere
Recommended Temperature Grade Type	TC1700 type
Shape	Customizable
Size	Customizable
Heating Element Temperature (Air Environment)	1700℃
Features	1.The compact and complete element protective layer can well resist the corrosion of special atmosphere; 2.The protective layer has strong regeneration capacity under oxidation environment andhigh temperatureconditions.
Application Range	Electric furnaces under non-oxidizing atmosphere

Product Advantages

★

Appearance：Good appearance without cracks and obvious scratches

★

Diameter：The uniform diameter is favorable for providing uniformheating fiel

★

Protective Layer：Protective Layer is compact and good，not easay to fall off

★

Welding Spot：Welding Spot is firm which has strong impact resistance and is not easy to break

★

Bending：The geometry of the bending part is accurate

★

Density：High density, higher conductivity, faster heating, lower power consumption, help save production cost

★

High tenacity ：The product is shaped in hot-working process, better tenacity , can meet more customized needs

★

High Temperature Strength：Good high temperature strength, can bear higher surface load in high temperature environment, not easy to get out of shape

★

Purity：High purity. TC1900, TC1850 type is especially suitable for high-end dental furnaces and lab electric furnaces

★

Temperature Resistance：High temperature resistance, not easy to overheat damage

★

ISO9001 quality control system and professional technical team to ensure stable quality

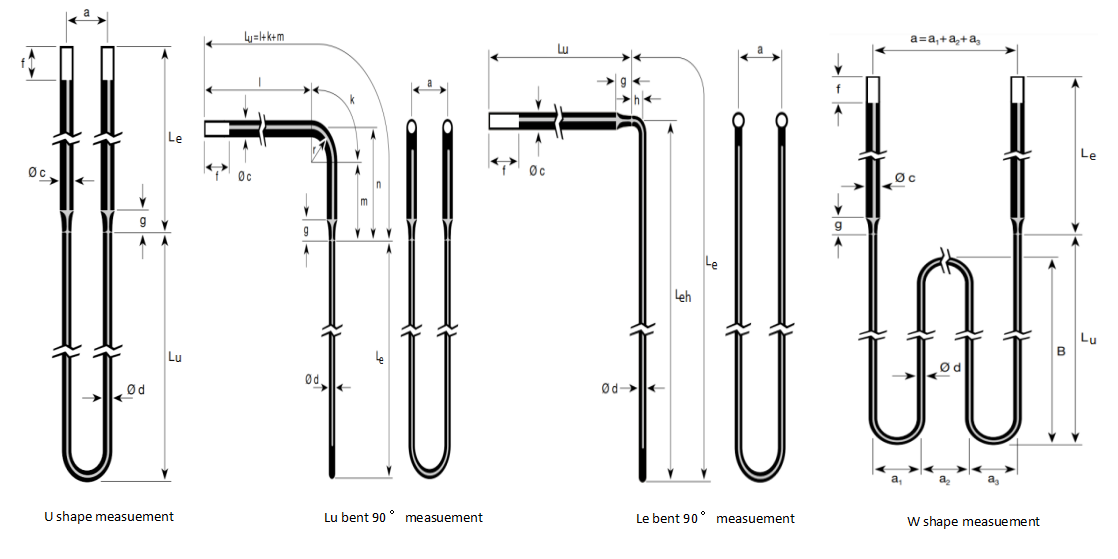

Processing standards

Product Standard specifications
Diameter(mm) φd(hot zone)/ φC(cold zone)	shape	length(mm) Le(hotzone)/ Lu(cold zone)	a(mm)		g(mm)	f(mm)	h(mm)	n(mm)
Diameter(mm) φd(hot zone)/ φC(cold zone)	shape	length(mm) Le(hotzone)/ Lu(cold zone)	Standard	Minimum	g(mm)	f(mm)	h(mm)	Standard	Minimum
3/6	U,L ,W or customized	customized	25	12	15	30	10	40	35
4/9	U,L ,W or customized	customized	25	15	20	30	10	50	45
6/12	U,L ,W or customized	customized	50	25	25	45	15	90	70
9/18	U,L ,W or customized	customized	60	35	32	75	20	135	110
12/24	U,L ,W or customized	customized	80	50	40	100	35	/	/

PACKING

Delivery

For small orders,the delivery time is1~3working days or 7 working days;For large orders or urgent orders,the delivery time can be negotiated. The product may be transported by by air, boat, railway, Express etc.

A/S

Within 7 days after receiving the product, Please confirm whether there is any damage on the outer packing and product . If If the product is damaged, send the photos or video about the damaged product and outer packing to us , We will provide you with the after-sales service.

ABOUT US

★

Dedicated and professional:Since 1998 ，Focus on the production of Mosi2 series products

★

Source factory:＞13000㎡

★

Number of employees:＞100

★

Annual production:＞60T

★

Patented technology & ISO9001Certification（patent type： invention patent certificate,Patent number：ZL 99 1 12205.4 International Patent Main classification number: C01B 33/06 Independent patented technology

★

Technical support:Customizable

★

Customer service:Professional & effective

★

MOQ 1PCS:Treat every customer as a VIP guest

★

Fast Deliver: Timely delivery rate 100%

★

Worry-free After-sales:Excellent after-sales team

★

Export country: The United States,Europe,Japan, Korea, Southeast Asia etc.
